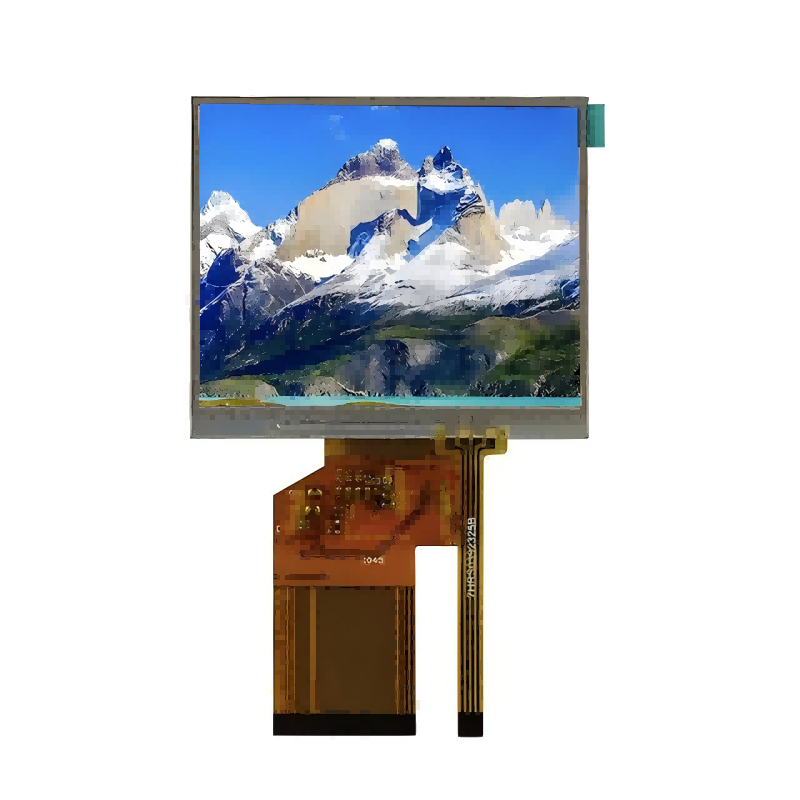

3,5 ίντσες 320x240 ευρεία θερμοκρασία IPS TFT Module

TFT Module can be found everywhere in life, what makes the Victronix 3.5 inch 320x240 Wide Temperature IPS TFT Module different from other manufacturers? At first, its 1000 cd/m² typical luminance (1200 cd/m² max) and 300:1 contrast ratio ensure vivid imagery. Secondly, it not only supports versatile 24-bit parallel RGB + SPI serial control (Driver IC: HX8238D) but also integrates a 6-LED white backlight with 50,000 hours (typ.) lifespan (to 50% initial brightness) ensuring that it can be used for long-lasting in different industrial situations. Besides, it passes stringent standards for high/low-temperature operation, thermal shock, humidity, vibration, and ESD (±4kV air discharge) tests to operate reliably from -20°C to +85°C.

This Victronix 3.5 inch TFT Module is suitable for industrial HMI, test equipment, medical devices, portable instruments, and any application requiring a dependable, high-visibility display solution.

Specification

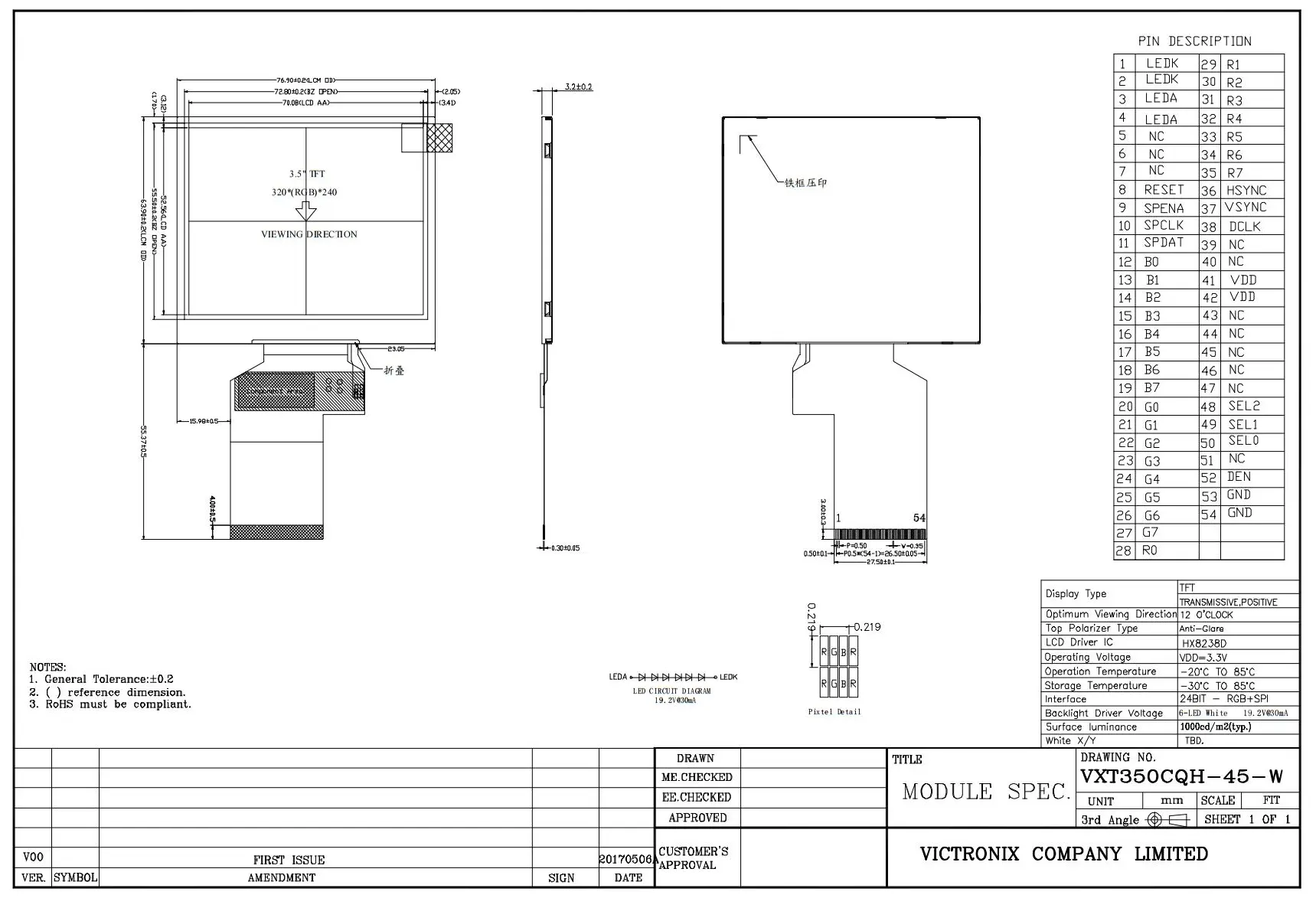

Drawing
