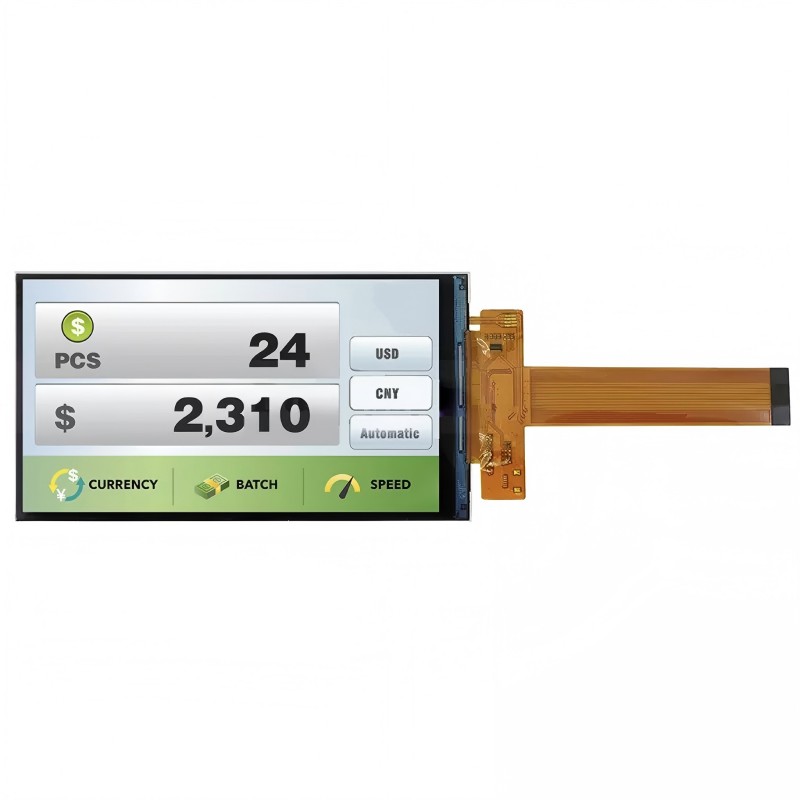

5 ιντσών 720x1280 μονάδα IPS TFT

What are the advantages of the Victronix 5 inch 720x1280 IPS TFT Module in the competitive situation of TFT Module manufacturers? At first, it achieves a typical luminance of 850 cd/m² (with a maximum of 1200 cd/m²) and a contrast ratio of 1200:1, ensuring excellent visibility even in challenging lighting conditions. Secondly, it features a 14-DIES white LED backlight system with a typical lifespan of 50,000 hours (to 50% initial brightness), ensuring clarity and extended use in various lighting conditions. Besides, it was validated through IEC-standard tests including thermal shock (-30°C ↔ +85°C), humidity storage (60°C/90% RH), and vibration resistance to operate seamlessly across an extended temperature range (-20°C to +80°C). In addition, its MIPI DSI interface supports four data lanes for high-speed video transmission of up to 850 Mbps. It features a 5-point capacitive touch screen with a G+G structure and a hardness rating of at least 6H. It has an I²C interface using the GT967 driver and includes a ZIF connector.

This 5 inch TFT Module from Victronix is commonly used in medical devices, industrial HMIs, portable instrumentation, and rugged embedded systems that require sunlight readability, touch interaction, and operation in extended temperature ranges.

General Specification

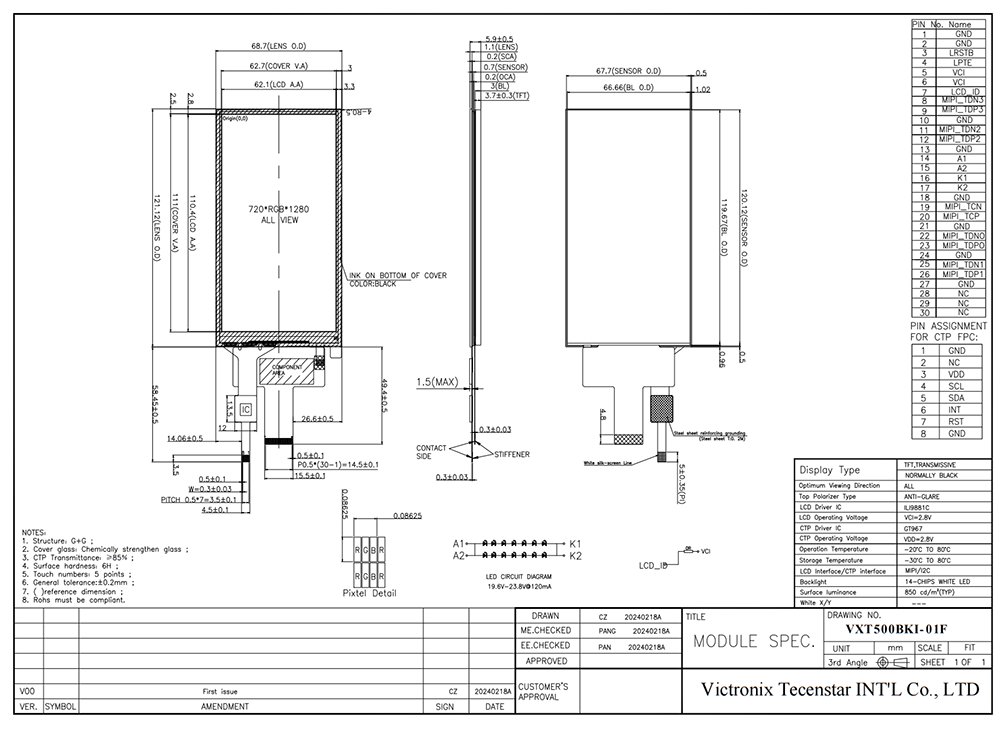

Mechanical Drawing
